Safety Relays

A safety relay is a critical electromechanical switching component used in safety-related control systems to ensure reliable operation of machinery and protect human lives. It works by monitoring safety inputs (like emergency stop buttons or light curtains) and ensures that proper safety actions are taken—such as stopping a motor or disconnecting power—when a fault is detected.

Unlike standard relays, safety relays are designed with special internal structures such as forcibly guided contacts, which ensure reliable detection of contact welding or failure—an essential feature in safety-critical applications.

Panasonic Safety Relay

Panasonic offers a diverse range of safety relays designed to meet global safety standards (EN/IEC 61810-3), enabling safe and efficient control in compact industrial systems. Key series include:

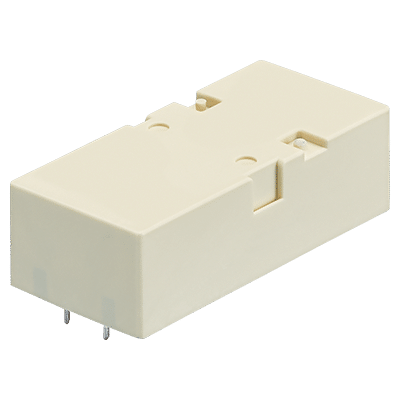

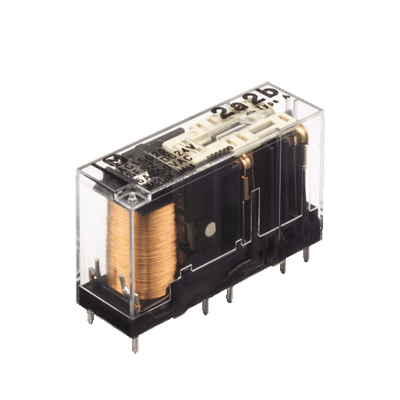

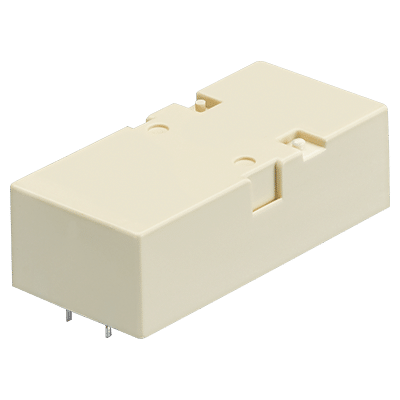

SF Relays	SF Relays – Slim Type	SF Relays Double Contact Type

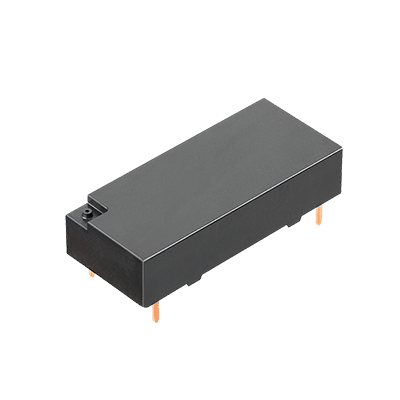

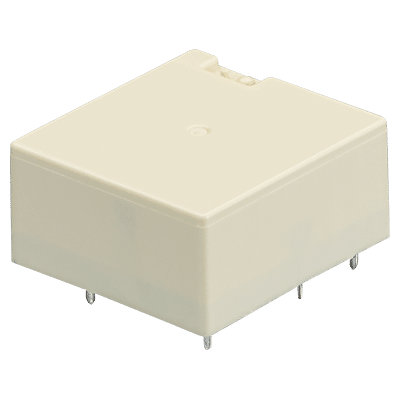

SF-M Relays	SF-Y Relays

Values Provided by Panasonic Safety Relays

• Miniaturization of All Safety Applications
  Panasonic’s relays are designed with a compact footprint, enabling integration into space-constrained control panels and devices.
• Power and Safety Under Harsh Conditions
  Built for industrial reliability, our relays withstand tough electrical and mechanical environments without compromising performance.
• Multi-Contact Control
  Multiple contact configurations (1a1b, 2a2b, etc.) enable complex logic control and redundancy in safety systems.
• Energy Saving through Lower Coil Holding Power
  Low coil power consumption helps reduce overall system energy usage and heat generation.

Panasonic’s Technology and Uniqueness

• Extensive Lineup for Diverse Needs
  We offer a rich variety of form factors and contact arrangements, allowing for seamless integration into diverse safety architectures.
• Forcibly Guided Contact Structure (per EN/IEC 61810-3)
  Ensures that NO and NC contacts never close simultaneously. This structure guarantees the detection of any contact failure—a must for certified safety control systems.
• Double Contact Mechanism for High Reliability
  Dual-contact design ensures fail-safe operation, even in demanding switching scenarios.
• Large Contact Gaps for Inductive DC Loads (DC13 Rated)
  Superior arc suppression capabilities support direct switching of inductive DC loads such as solenoids and contactors.

Features

• Complies with international safety standards (EN/IEC 61810-3)
• Forcibly guided contacts for failure detection
• High insulation and surge withstand capability
• Compact size with high switching power
• Low power consumption for energy-efficient designs
• Long mechanical and electrical life

Applications

Panasonic safety relays are widely used in:

• Industrial automation and factory machinery
• Robot safety circuits and emergency stop systems
• Elevators, conveyors, and safety doors
• Medical and laboratory equipment
• Energy management systems and power distribution

If you’re looking for compact, reliable, and energy-efficient safety solutions, Panasonic’s safety relay range delivers unmatched performance with compliance, innovation, and proven reliability.
